Craft Lite Series
Craft Lite® Series
FILTER
Critical Dimension
1ft
2ft
3ft
4ft
5ft
6ft
7ft
8ft
Mounting Options
Cable
Chain
Continuous Row
Pendant
Surface
Power Input
UNV 120 - 277 VAC

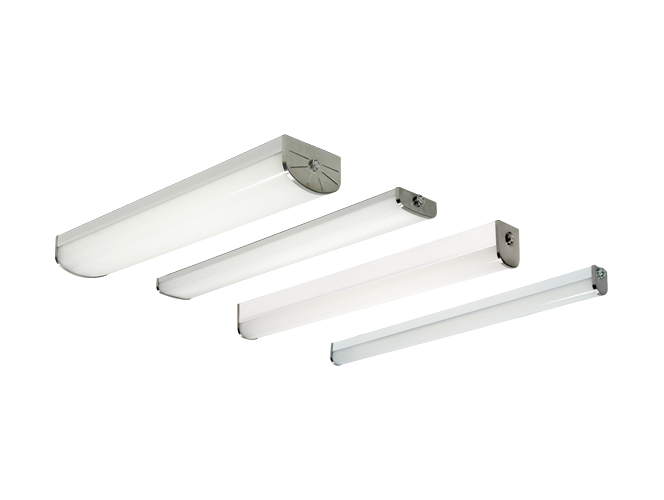

Craft Lite® Series

Paramount’s Craft Lite was the first luminaire created by Paramount in 1947. It specializes as a heavy duty, enclosed & gasketed, wet location linear luminaire. This model is available in C0 through C8 series in lengths from 2 through 8-foot. The Craft Lite line is often customized, available in stainless steel construction, with a myriad of other options to choose from. A favorite for Transit & Municipal applications, and are ETL/cETL Listed for Wet, Hazardous, and Food Processing.



• Don’t see the luminaire you need, click here to contact us.

• To learn more about In-row or Individual mounting, click here.


Selections:
C0
Craft Lite® Extreme Series
2700K / 3000K / 3500K / 4000K / 5000K
2ft / 3ft / 4ft
Round Lens / Optional Square Lens
Wet / NFS Splash Zone / NSF Food Zone
Cable / Chain / Continuous Row / Pendant / Surface
1900-3800 lm (27W Max)
UNV 120 - 277 VAC
2 1/8"W x 3 1/8"H
Downloads
Spec Sheet Downloads
icon
C0.pdf
IES Downloads
icon
C0_LED.zip
Install Instructions Downloads
icon
Cii.pdf
C2
Craft Lite® Extreme Series
2700K / 3000K / 3500K / 4000K / 5000K
1ft / 2ft / 3ft / 4ft / 5ft / 6ft / 7ft / 8ft
Round Lens / Optional Square Lens
Hazardous / Wet / NFS Splash Zone / NSF Food Zone
Cable / Chain / Continuous Row / Pendant / Surface
1200-9300 lm (70W Max)
UNV 120 - 277 VAC
3"W x 4"H
Downloads
C3
Craft Lite® Extreme Series
2700K / 3000K / 3500K / 4000K / 5000K
1ft / 2ft / 3ft / 4ft / 5ft / 6ft / 7ft / 8ft
Round Lens / Optional Square Lens
Hazardous / Wet / NFS Splash Zone / NSF Food Zone
Cable / Chain / Continuous Row / Pendant / Surface
900-7200 lm (53W Max)
UNV 120 - 277 VAC
4 7/16"W x 5 3/8"H
Downloads
C4
Craft Lite® Extreme Series
2700K / 3000K / 3500K / 4000K / 5000K
1ft / 2ft / 3ft / 4ft / 5ft / 6ft / 7ft / 8ft
Round Lens / Optional Square Lens
Hazardous / Wet / NFS Splash Zone / NSF Food Zone
Cable / Chain / Continuous Row / Pendant / Surface
1200-18600 lm (139W Max)
UNV 120 - 277 VAC
5 9/16"W x 6"H
Downloads
C5
Craft Lite® Extreme Series
2700K / 3000K / 3500K / 4000K / 5000K
1ft / 2ft / 3ft / 4ft / 5ft / 6ft / 7ft / 8ft
Round Lens / Optional Square Lens
Hazardous / Wet / NFS Splash Zone / NSF Food Zone
Cable / Chain / Continuous Row / Pendant / Surface
2300-18600 lm (144W Max)
UNV 120 - 277 VAC
6 5/16"W x 2 3/8"H
Downloads
C6
Craft Lite® Extreme Series
2700K / 3000K / 3500K / 4000K / 5000K
1ft / 2ft / 3ft / 4ft / 5ft / 6ft / 7ft / 8ft
Round Lens / Optional Square Lens
Hazardous / Wet / NFS Splash Zone / NSF Food Zone
Cable / Chain / Continuous Row / Pendant / Surface
2300-19000 lm (144W Max)
UNV 120 - 277 VAC
9 3/16"W x4 1/4"H
Downloads
C8
Craft Lite® Extreme Series
2700K / 3000K / 3500K / 4000K / 5000K
1ft / 2ft / 3ft / 4ft / 5ft / 6ft / 7ft / 8ft
Round Lens / Optional Square Lens
Hazardous / Wet / NFS Splash Zone / NSF Food Zone
Cable / Chain / Continuous Row / Pendant / Surface
2300-37200 lm (285W Max)
UNV 120 - 277 VAC
12 1/8"W x 6 1/4"H
Downloads
